Other attributes
Place of Origin : Zhejiang, China
Voltage : 12V
Max Pressure : 151-250Psi
Size : 335x235x150mm
Brand Name : Monster4WD, Leise Outdoor
Model Number : MPAC013
Warranty : 1 Years
Max Air Flow Rate : 160L/Min
Cylinder Size : 60mm
Amp : 45A
Working Pressure : 150PSI
Max Pressure : 200PSI
Air Hose : 7M PA Air Hose
Carry Bag : 600D with Foam Insert
Cylinder Cover Materials : Zinc Alloy
Packages : Colour Box with Foam Insert
Popular Market : 4WD Aftermarket, 4X4
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
PRODUCT DESCRIPTION

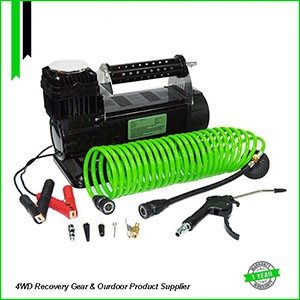

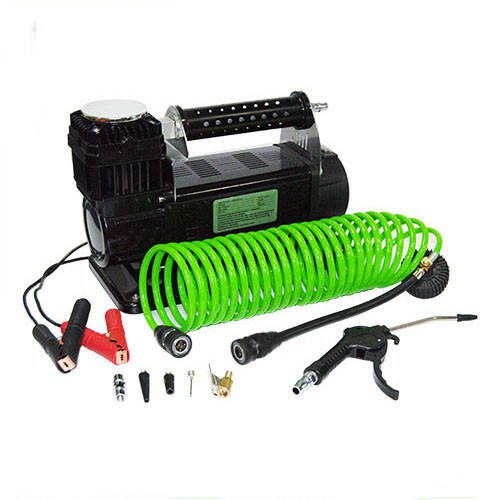

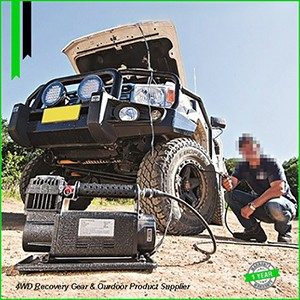

ARTHD PORTABLE AIR COMPRESSOR , 12 VOLT AIR COMPRESSOR , 4X4 AIR COMPRESSOR
ARTHD compressors are intended to fill air tanks, tires.our quality engineered Mounting Compressor is widely use on the 4WD Market which worked by 12-volt and 24-volt power.
The New Monster4WD Quick Connector Series compressor is with both end quick coupler on the air hose that you can change the inflating tools that you want for different option such as for tyres , balls , Air blow or Air bag and so on .
NOTE: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.
PRODUCT SPECIFICATION:
COMPRESSOR SPEC:
Metal Cylinder Size: 60mm
Air Flow Rate: 160L / Min
Max Working Pressure: 150psi
Max Current: 45Amp
Wire Size: 2.4m with Batteries Clamp
Automatic Reset Therminal Cut-off Protector 105℃
Built-in Air Fitter
Metal Housing
Permanent Magnetic Motor
HOSE SPEC:
0.5m Rubber Hose
7m PA Hose with Built-in Air Gauge(PSI & KPA), both end Quick Release Male Coupler
Screw Type Air Chuck
ACCESSORIES:
1pc Female Plug
3pcs Adapters
1pc Screw type Air Chuck
1pc Air Blow Gun.
1pc Carry Bag
Full Colour Printed Package Box
| PRODUCT PICTURE | DESCRIBE | Colour |
 |

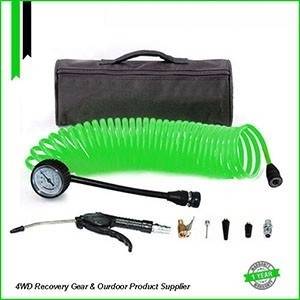

Hose And Accessories 0.25m Rubber Hose + 7m PA Air Hose with inline Tyre Gauge. Both End of the Hose is with Quick Connect Coupler. 1pc Quick Release female plug 3pcs inflate adaptor 1pc Screw Type Air Chuck. 1pc Air Blow Gun. |
/ |
  |

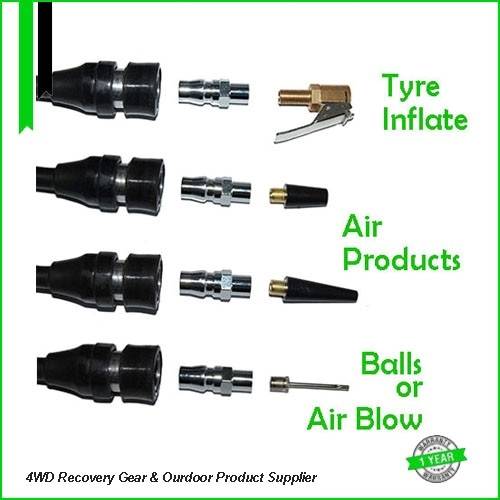

How it work
Check the picture and you can see that you can quick replace the inflate accessories as you want similar as ARB Pump Up Kit.

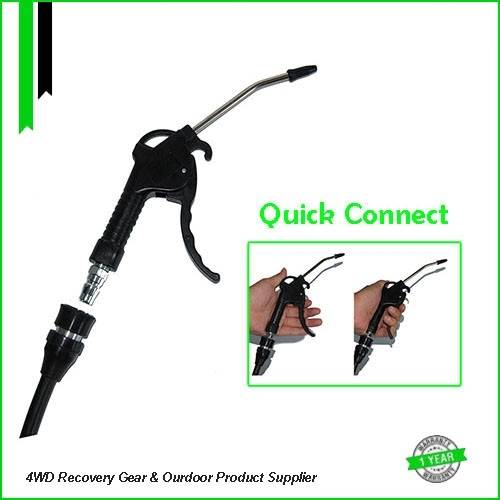

And in that way , the quick coupler can also use with tyre inflator gun, air blow gun or any other air device with the quick release plugs.
Makes the job more easy . |
/ |
  |
Cylinder
60mm Single Cylinder with Metail Cover High Power 160L air flow rate per mins. |
Standard Colour: Black Powder Coated |
  |

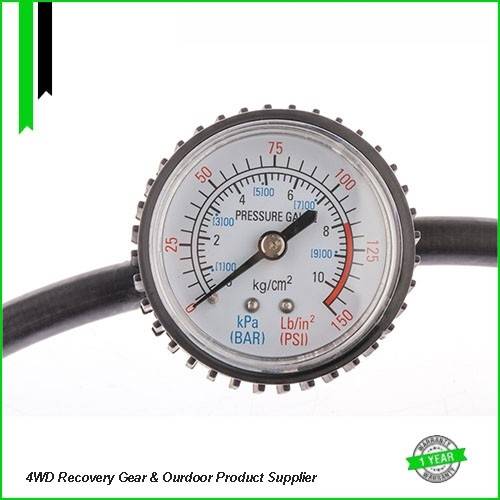

Tyre Pressure Gauge
Accurated gauge from 0 to 150psi and other 3 scales(KPA,BAR & LBS). Rubber Protector cover With pressure release valve on back |
Standard Colour: Black |
  |
Battery Clamp Quality 100% Brass Battey Clamp with 2.4m Wire. Soft Hanle Cover |
Standard Colour: Black + Red |
