Industry-specific attributes
Application : 4X4 or Truck
Voltage : 12V
Other attributes
Place of Origin : Zhejiang, China
Brand Name : ARTHD
Model Number : MWINCH12000B
Power Source : Electric
Voltage : 6.0hp/4.5kw
Input Power: : 6.0hp/4.5kw
Dimensions : (LxWxH)21.3″x6.3″x8.6″(552x160x218mm)
Gear train : 3 Stage Planetary
Gear train ratio : 265.2:1
Clutch : Sliding Ring Gear
Braking Action : Automatic In-The-Drum
Fairlead : Inline Alum Alloy Fairlead
attery: Recommended : 650CCA minimum for winching
Capacity : 12000LBS
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
PRODUCT DESCRIPTION
ARTHD Quality 4WD Recovery Equipment, Camping Equipment , Portable Shovel, Folding Shovel, Camping Shovel
TIP:The Winch can be one of your most valuable recovery tools, but they are also incredibly tricky and dangerous to use if not done right. Being a 12 volt winch, all the work is done by the engines alternator when it’s running. It comes with a handy remote which can be operated wired or wirelessly for any situation. Must be Read Winching Guide using the following must have winch products: A tree trunk protector, rated bow shackle and an air damper.
Don’t get stuck and have no way out, make sure you have a Winch handy and a recovery kit to suit and make sure you check out some of our 4WD Safety tips below.
All our winches and accessories are Product Liability Insurance covered worldwide.
With Approval of CE and one year of warranty, it definetely is a good choice for you!
PRODUCT SPECIFICATION:
Performance:12VDC
Single line rated pull 12000lb(5443kg)
Motor:6.0hp/4.5kw,Series Wound
Control:Remote switch,12ft(3.7m)lead
Gear train:3 Stage Planetary
Gear reduction ratio:265.2:1
Clutch:Sliding Ring Gear
Braking Action:Automatic In-The-Drum
Drum size Diameter:2.52"±(64mm) Length 8.82"±(224mm)
Cable:88ft of 3/8"± diameter (27m of 9.5mm diameter)

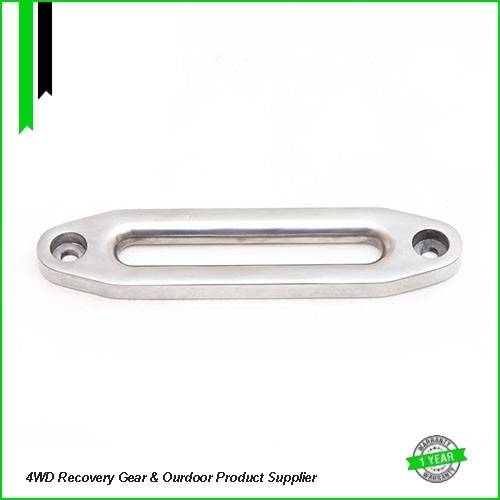

Fairlead:Alum Alloy Fairlead
Remote Control:Included
Battery:Recommended:650CCA minimum for winching
Battery Leads:2 gauge,72"(1.83m)
NW/GW:42kg/46kg
Overall dimentions:(LxWxH)21.3"x6.3"x8.6"(552x160x218mm)
Mounting Bolt Pattern:10.00±0.015"± x4.50±0.010"±(254×114.3mm)
MEAS:61×19.5×48.5cm(1pc)

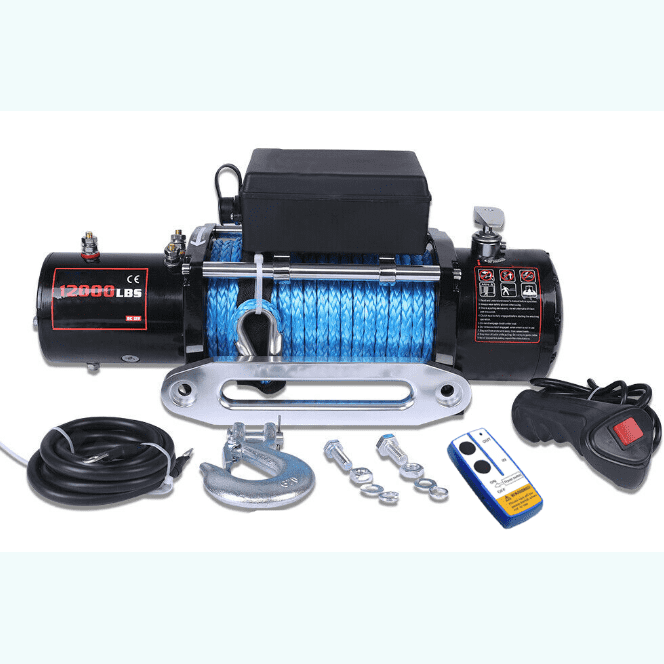

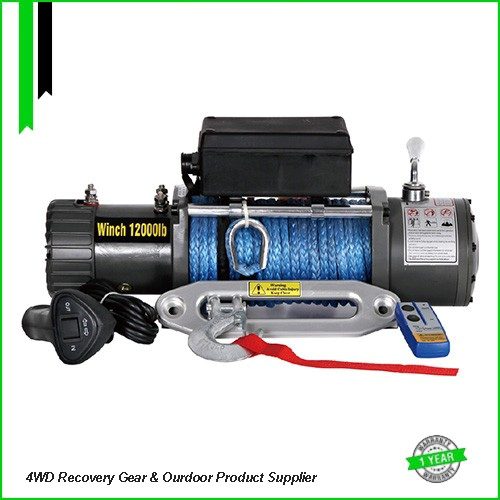

WINCH WITH SYNTHETIC ROPE

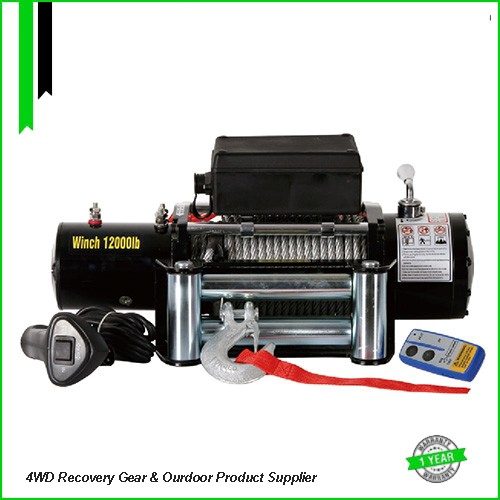

WINCH WITH STEEL CABLE
