Industry-specific attributes

Applicable Industries : Retail, Auto

Type : Snatch Block

Material : Steel

Other attributes

Place of Origin : Zhejiang, China

Warranty : 1 Year

Customized support : OEM

Brand Name : Monster4WD

Materials : Heavy Duty 45# Steel

Standard Colour : Black or Red

Optional Colour : Contact us for more information

Woking Load Limited : 8000kgs (17600 LBS)

Grease Nipple : Yes

Length : 230mm

Width : 125mm

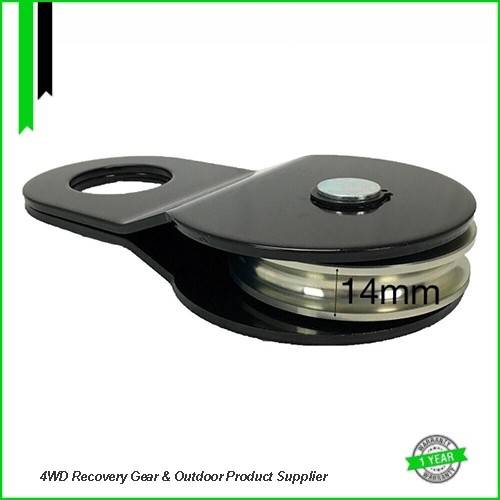

Suit Rope : 14mm

Different Name : Pulley Block, Snatch Pulley, 4WD Snatch Block

Supply Ability

Supply Ability : 10000 Piece/Pieces per Month

PRODUCT DESCRIPTION

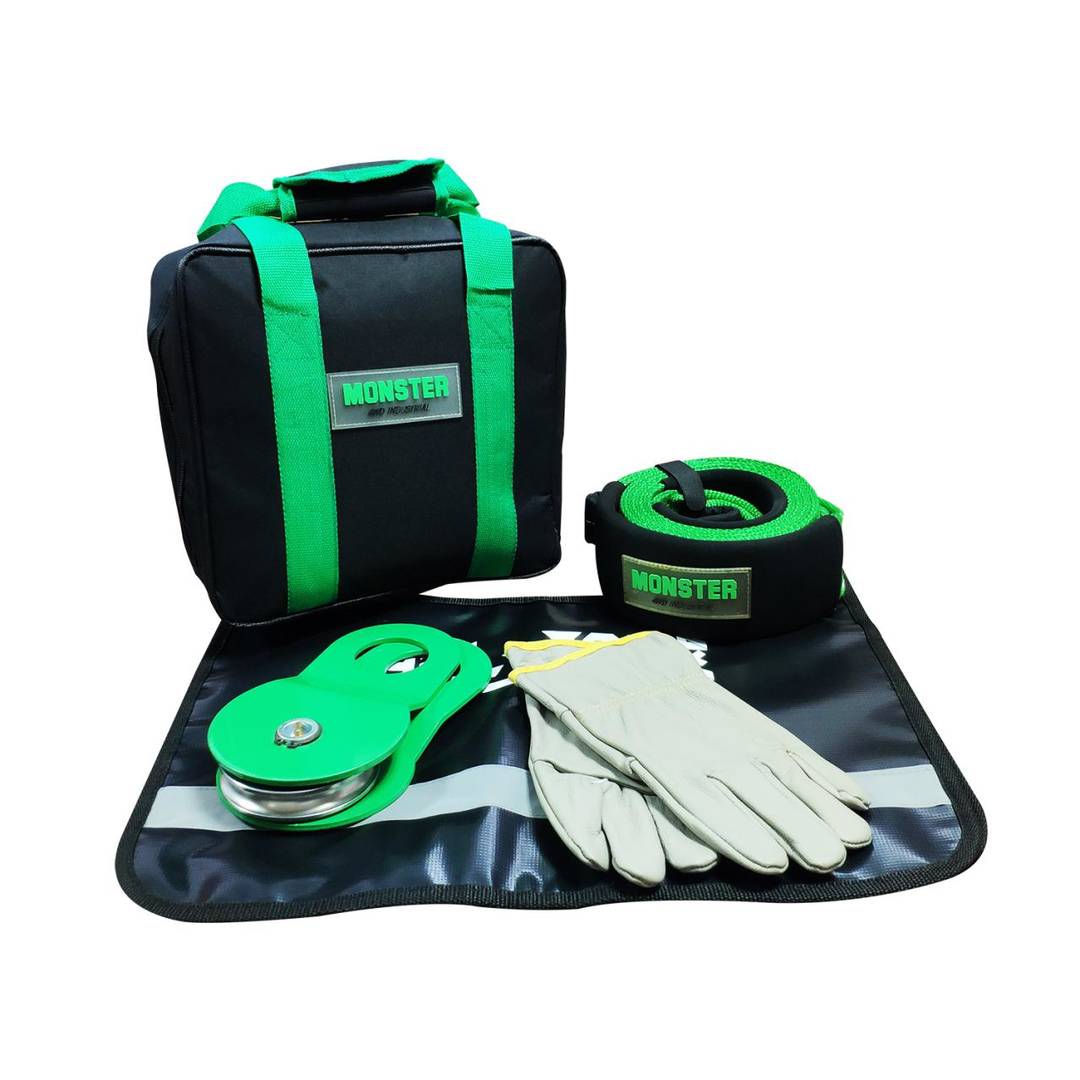

ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Snatch Blockm Recovery Hitch

TIP:Snatch blocks reduce the load placed on a winch when performing a recovery or to avoid damage when changing the direction of the cable.

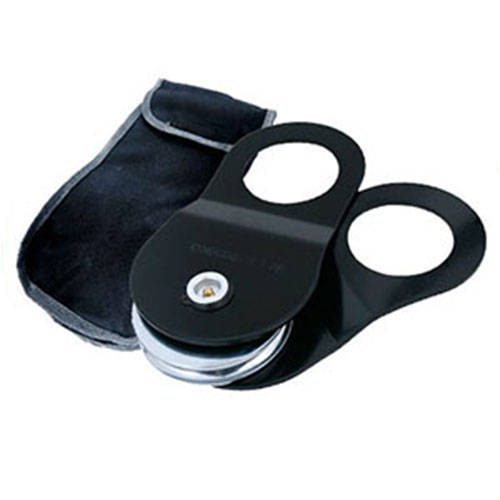

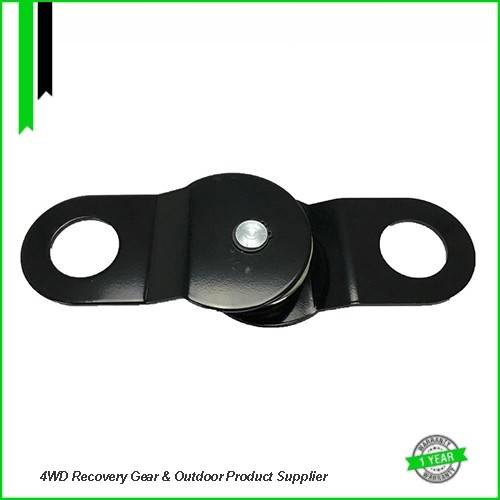

The snatch block has two outer steel casings which swivel apart and allow the winch cable to be placed over the pulley wheel. Attach snatch blocks to appropriately rated recovery accessories such as tree trunk protectors or extension straps. Connection should be made using rated Bow or D shackles through the eyelets on the two outer casings of the snatch block.

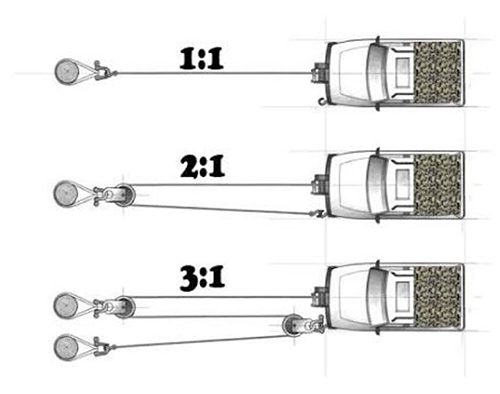

Snatch blocks increase the pulling capacity by 1.5 times for each snatch block used. When using a snatch block your line pull speed is reduced.

PRODUCT SPECIFICATION:

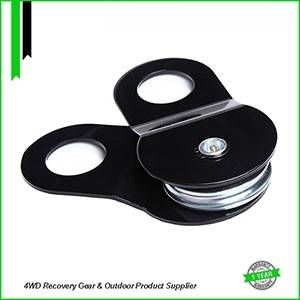

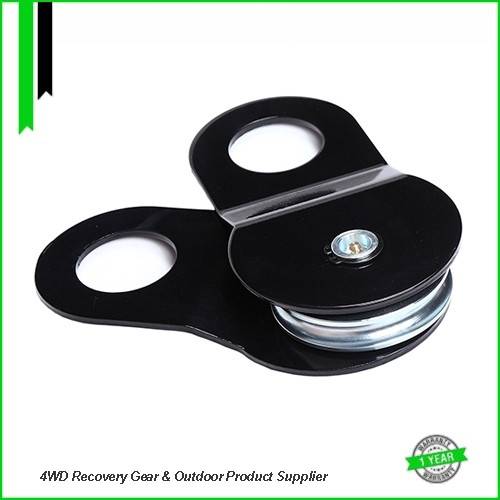

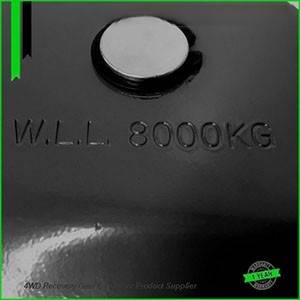

Rated WLL 8000kgs(8Ton) Snatch Block
Materials: Steel
With Grease Nipple

10000kgs and 4000kgs available

All 4WD Snatch Block Available at ARTHD

PRODUCT PICTURE	DESCRIBE	Colour

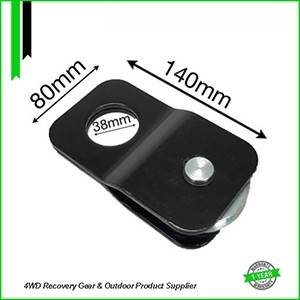

	4T Snatch Block Rated 4000kgs(8800LBS) 140mmx80mm	Standard Colour: Black Powder Coated Optional Colour: Red, Green, Black, Pink or Other , need to get confirmation before prepare the order.

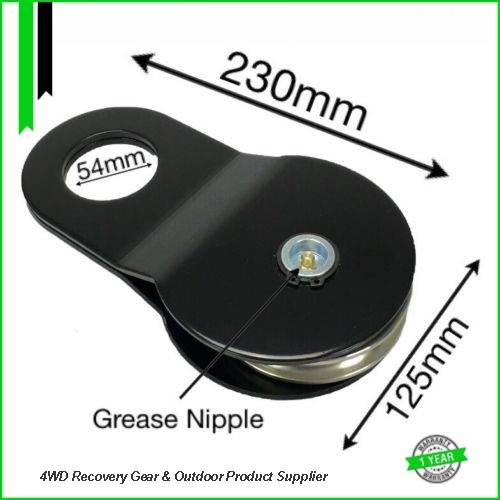

	8T Snatch Block Rated 8000kgs(17600LBS) 230mmx125mm	Standard Colour: Black Powder Coated Optional Colour: Red, Green, Black, Pink or Other , need to get confirmation before prepare the order.

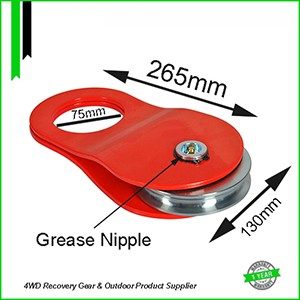

	10T Snatch Block Rated 10000kgs(22000LBS) 265mmx130mm	Standard Colour: Red Powder Coated Optional Colour: Black, Green, Black, Pink or Other , need to get confirmation before prepare the order.

The Standard Snatch Block using in the 4WD Recovery .
