Industry-specific attributes
Application : 4X4 or Truck
Voltage : Other
Other attributes
Place of Origin : Zhejiang, China
Brand Name : ARTHD
Model Number : MWINCH13000A
Power Source : Electric
Voltage : 6.0hp/4.5kw
Input Power: : 6.0hp/4.5kw
Dimensions : (LxWxH)21.3″x6.3″x8.6″(552x160x218mm)
Gear train : 3 Stage Planetary
Clutch : Sliding Ring Gear
Braking Action : Automatic load-holding brake
Remote Control : Included
Fairlead : 4-Way Roller Fairlead
attery: Recommended : 650CCA minimum for winching
Capacity : 13000LBS
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
PRODUCT DESCRIPTION
ARTHD Quality 4WD Recovery Equipment, Camping Equipment , Portable Shovel, Folding Shovel, Camping Shovel
TIP:The Winch can be one of your most valuable recovery tools, but they are also incredibly tricky and dangerous to use if not done right. Being a 12 volt winch, all the work is done by the engines alternator when it’s running. It comes with a handy remote which can be operated wired or wirelessly for any situation. Must be Read Winching Guide using the following must have winch products: A tree trunk protector, rated bow shackle and an air damper.
Don’t get stuck and have no way out, make sure you have a Winch handy and a recovery kit to suit and make sure you check out some of our 4WD Safety tips below.
All our winches and accessories are Product Liability Insurance covered worldwide.
With Approval of CE and one year of warranty, it definetely is a good choice for you!
PRODUCT SPECIFICATION:
13000lb truck winch CE approved
100% testing winches both in pulling and function! Foam package for every winch.
Specification:
Single line rated pull: 13000lb
Motor: 6.6HP/4.85kw, series wound 12V
Control Remote switch: 12ft(3.7m) lead
Gear train: 3 stage planetary
Gear reduction ratio: 230.4: 1
Clutch: Sliding ring gear
Braking: Automatic load-holding brake
Drum size: Diameter 2.5(63.5mm) Length8.8" (224mm)
Cable: 26m of 9.1mm diameter

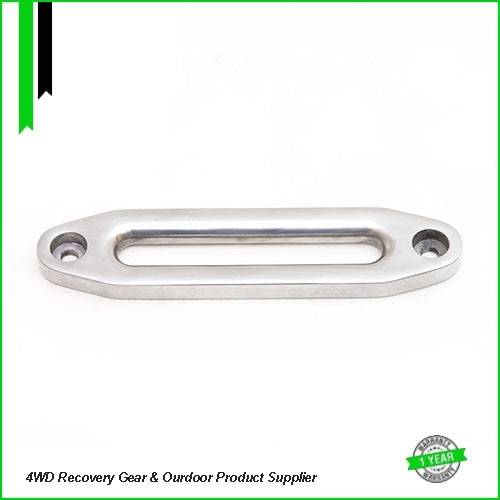

Fairlead: Alum.Alloy fairlead
Remote control: Included
Wireless Remote control: Optional
Battery recommended: 650CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finishing: Black, dark grey coating
Overall dimension (length*width*height): 538*160*214mm
Mounting bolt pattern: 10"*4.5"(254*114.3mm)
N. W. /G. W.: 37/39KG
Packing: Thick foam packing, 1PC/CTN

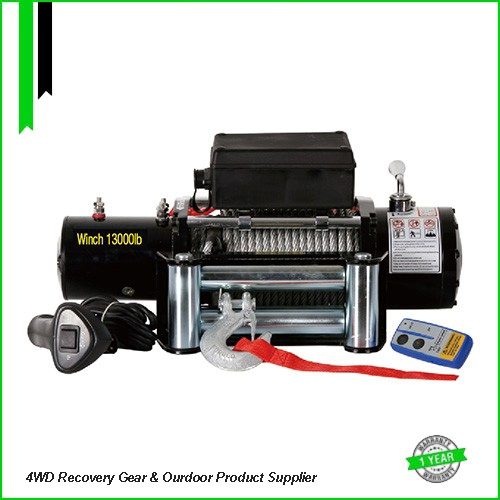

WINCH WITH STEEL CABLE

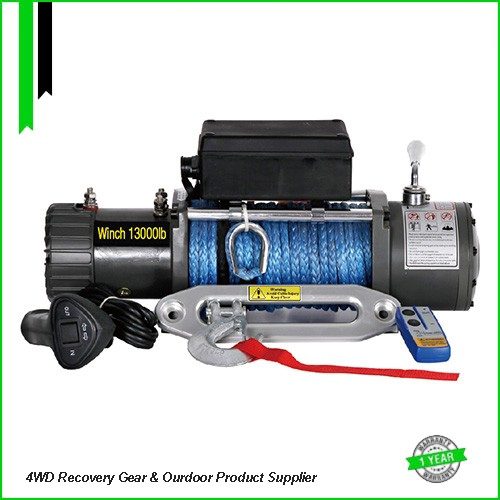

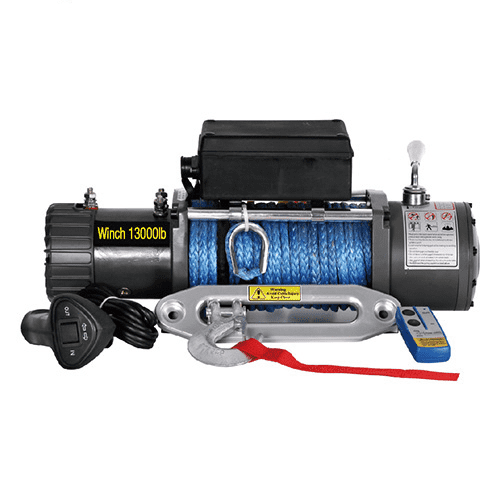

WINCH WITH SYNTHETIC ROPE
