Other attributes
Place of Origin : Zhejiang, China
Brand Name : Monster4WD, Leiseoutdoor
Model Number : M4WD-FHSP
Design Style : outdoor
Type : outdoor
Power : 60 to 300W
Colour : black
Solar Cell : MONO
Standard : Germany Standard
Max Power Voltage : 18.40V (Each Panel)
Max Power Current : 4.35A (Each Panel)
Power Tolerance : ± 2%
Temperature Range : -40°C to +85°C
MOQ : 100
Logo : Accept Customized Logo
Supply Ability
Supply Ability : 1000 Piece/Pieces per Month
PRODUCT DESCRIPTION
PRODUCT SPECIFICATION:

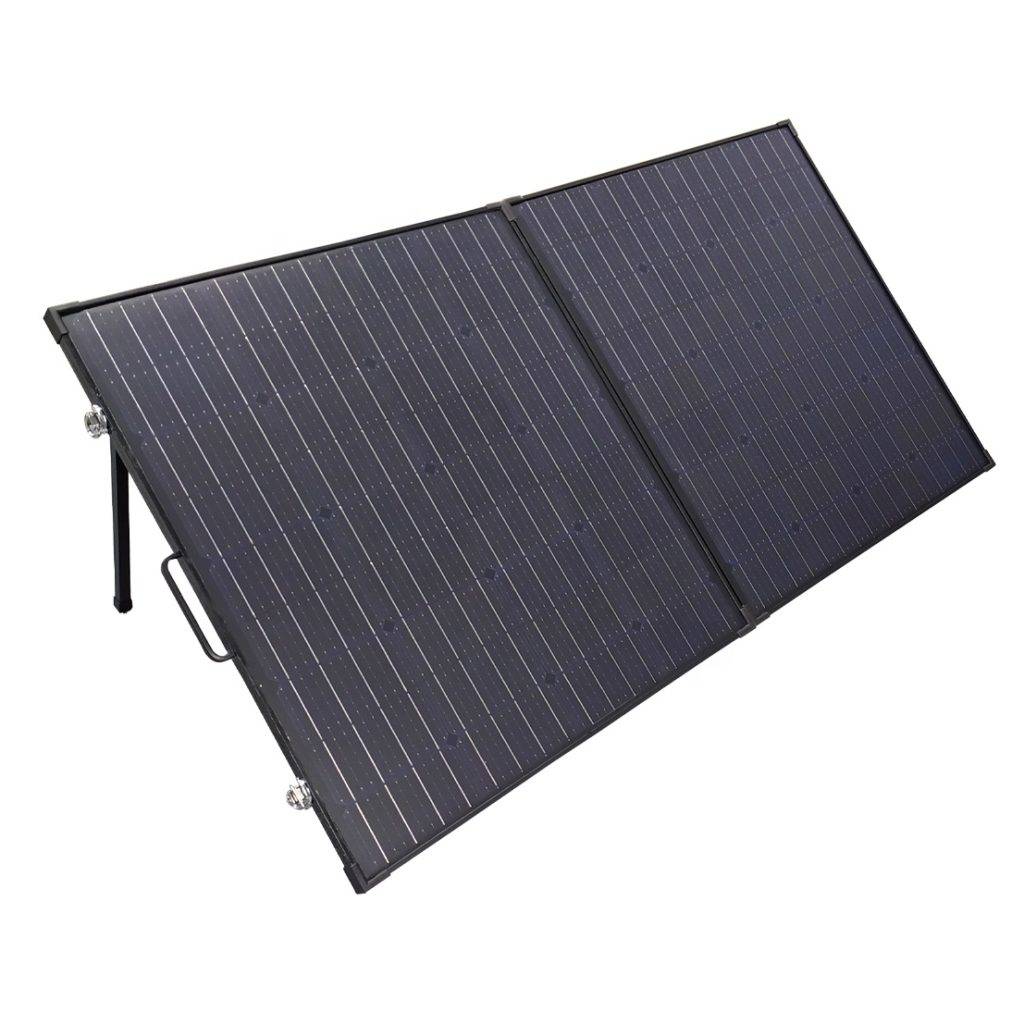

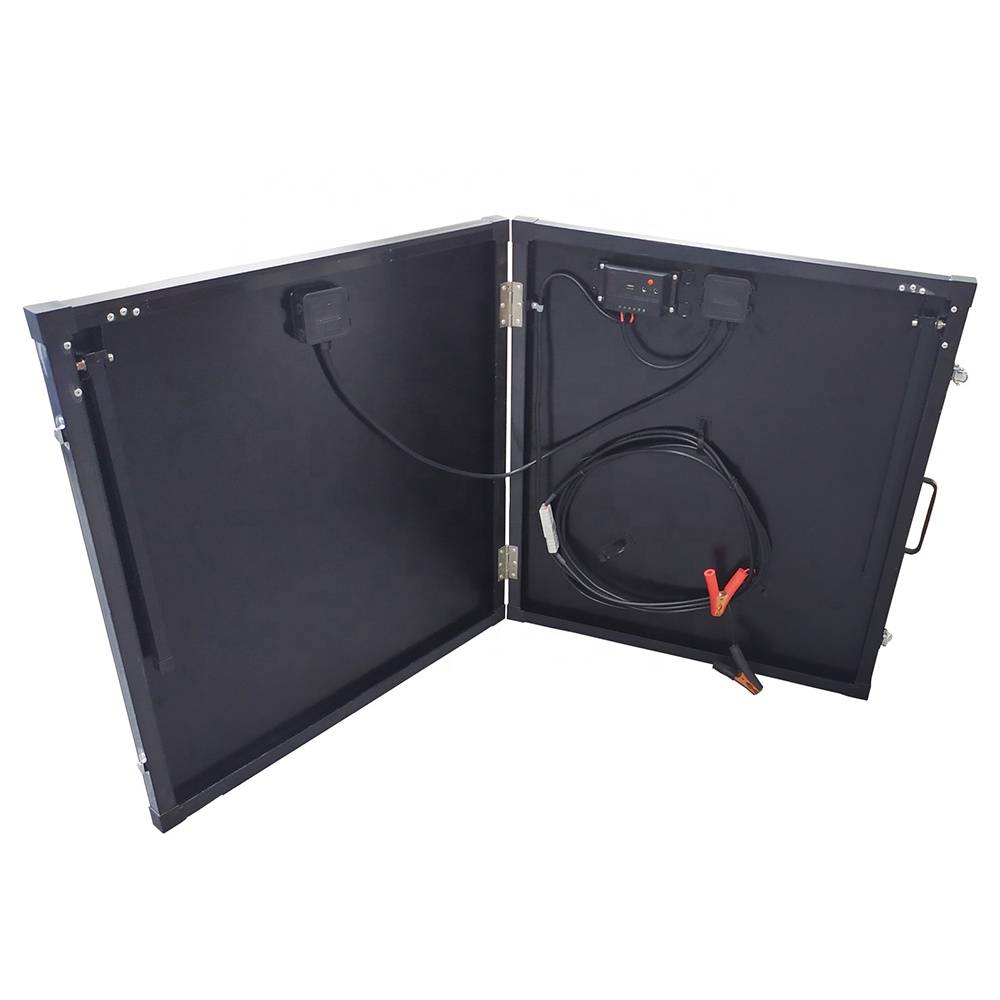

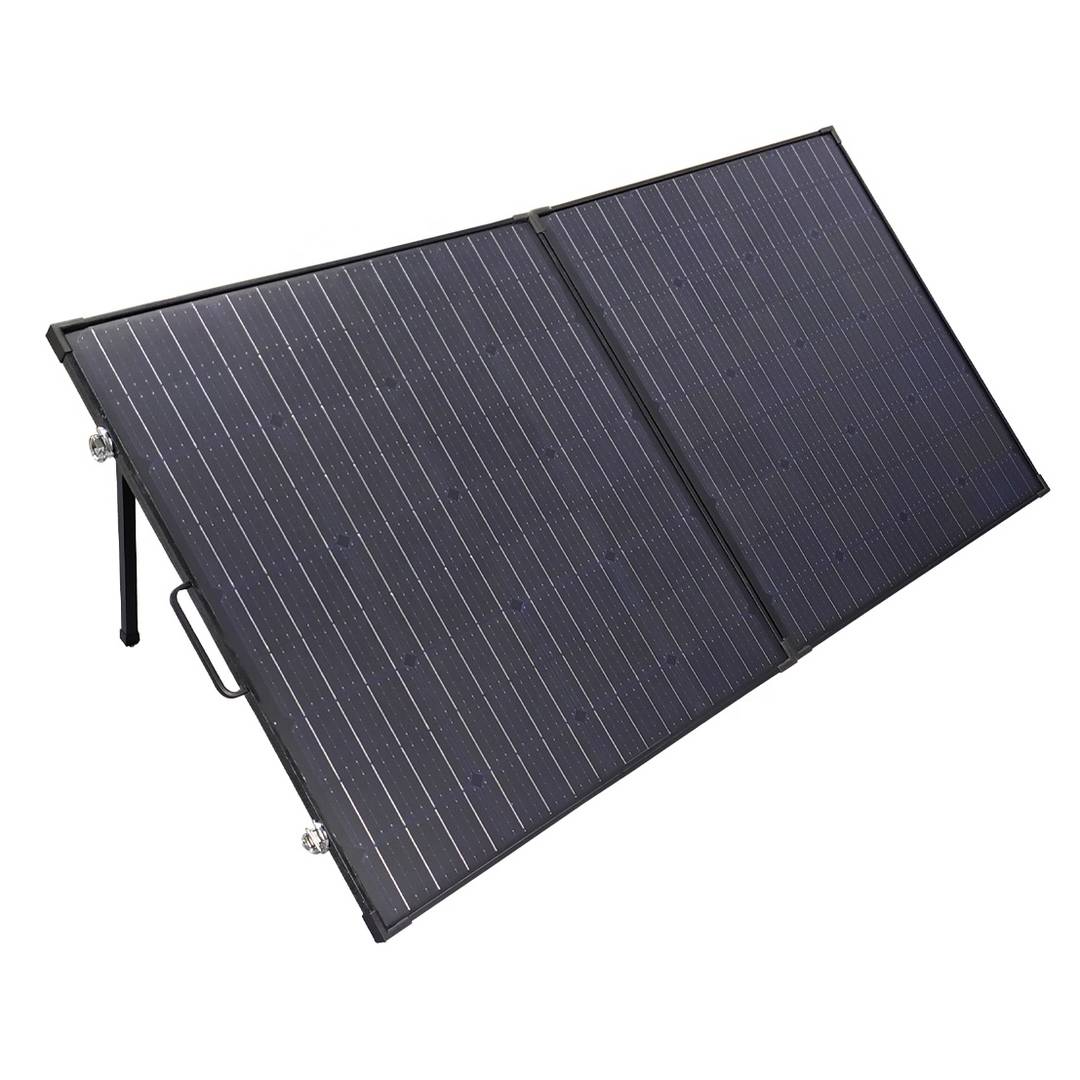

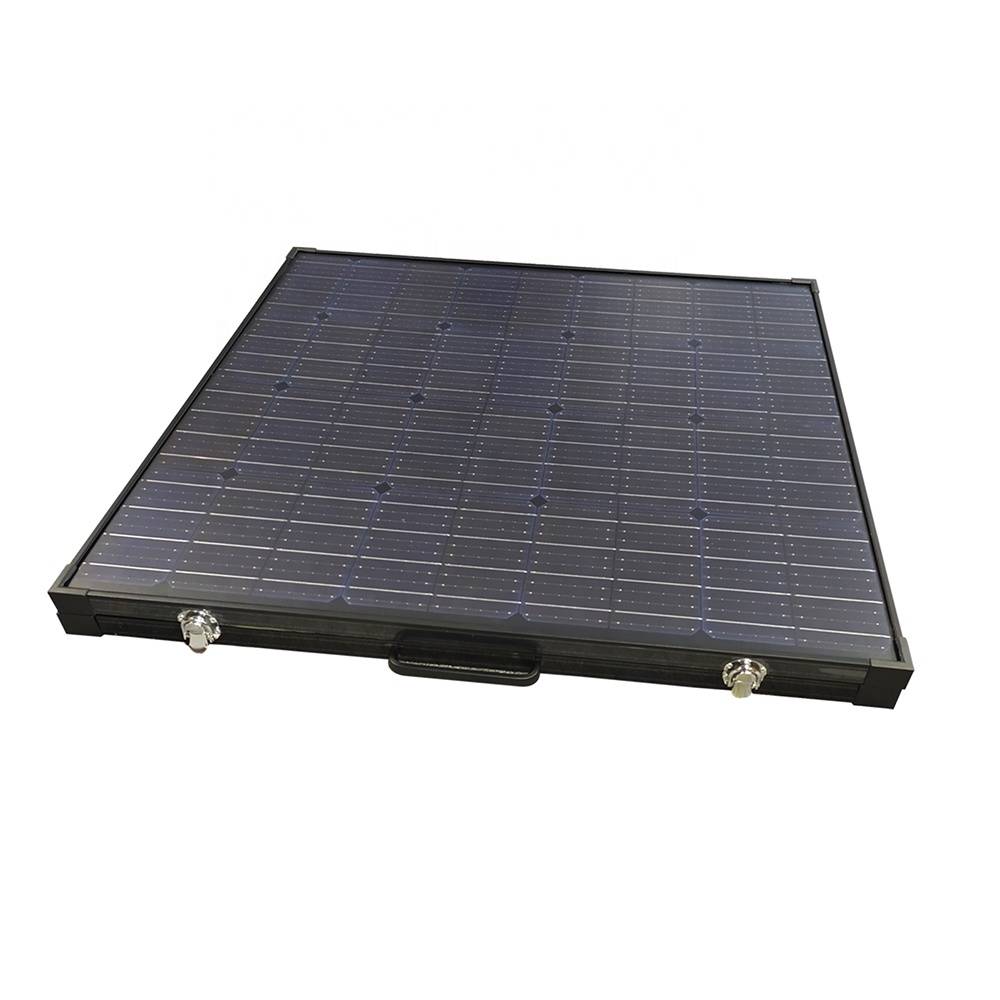

100W FOLDING SOLAR PANEL

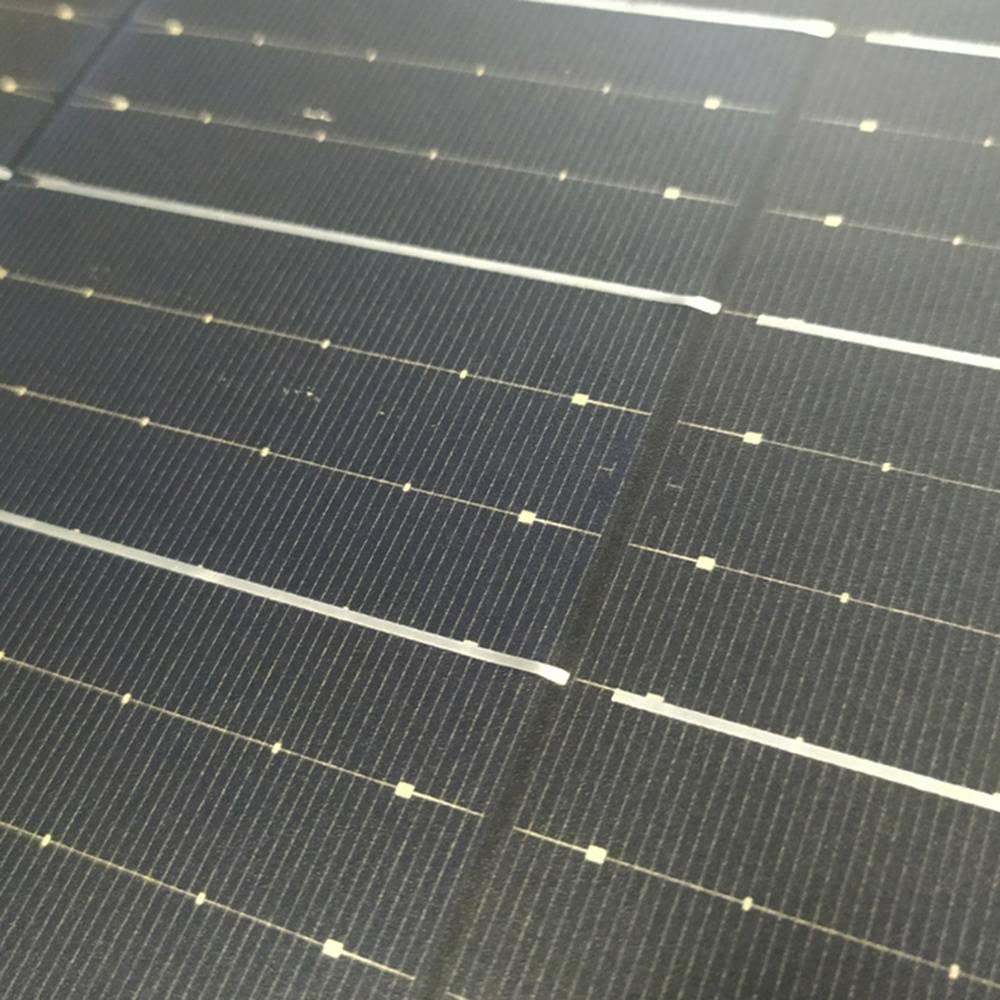

Solar Cell: Monocrystalline
Maximum Power(Pmax) 120W
Max Power Voltage 18.40V (Each Panel)
Max Power Current 4.35A (Each Panel)
Open-Circuit Voltage 22.50V (Each Panel)
Short-Circuit Current 4.66A (Each Panel)
Cell Efficiency Up to 22%
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ± 2%
Standard Test Conditions 1000W/m2, AM1.5, 25°C
Product Dimension(Folded) 740x510x50mm
Product Dimension(Open) 1020x740x25mm
Total Weight 5.00kg
160W FOLDING SOLAR PANEL
Solar Cell: Monocrystalline
Maximum Power(Pmax) 160W
Max Power Voltage 18.40V (Each Panel)
Max Power Current 5.43A (Each Panel)
Open-Circuit Voltage 22.50V (Each Panel)
Short-Circuit Current 5.85A (Each Panel)
Cell Efficiency 22%
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ± 2%
Standard Test Conditions 1000W/m2, AM1.5, 25°C
Solar Cell Mono
Product Dimension(Folded) 740x670x50mm
Product Dimension(Open) 1340x740x25mm
Total Weight 5.40kg
240W FOLDING SOLAR PANEL
Solar Cell: Monocrystalline
Maximum Power(Pmax) 240W
Max Power Voltage 18.40V
Max Power Current 16.32A
Open-Circuit Voltage 22.50V
Short-Circuit Current 17.02A
Cell Efficiency 22%
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ± 2%
Standard Test Conditions 1000W/m2, AM1.5, 25°C
Product Dimension(Folded) 1005x685x50mm
Product Dimension(Open) 1370x1005x25mm
Weight 8.13kg
300W FOLDING SOLAR PANEL
Solar Cell: Monocrystalline
Maximum Power(Pmax) 240W
Max Power Voltage 18.0V
Max Power Current 16.67A
Open-Circuit Voltage 22.50V
Short-Circuit Current 17.34A
Cell Efficiency 22%
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ± 2%
Standard Test Conditions 1000W/m2, AM1.5, 25°C
Product Dimension(Folded) 1370x690x50mm
Product Dimension(Open) 1370x1380x25mm
