Industry-specific attributes

Car Fitment : AACHEN SCHNAZER AC SCHNITZER

Other attributes

Place of Origin : Zhejiang, China

Function : Power Indicator, Tire Pressure Monitor

Voltage : 12V

Max Pressure : 101-150Psi

Size : 1.1 CFM 12v

Brand Name : Monster4WD, Leise Outdoor

Model Number : MMAC008

Warranty : 1 Years

Certification : CE

Max Air Flow Rate : 1.1 CFM

Cylinder Size : 40mm

Amp : 30A

Working Pressure : 150PSI

Max Pressure : 200PSI

Air Hose : 7M Rubber Air Hose

Carry Bag : 600D with Foam Insert

Cylinder Cover Materials : Zinc Alloy

Packages : Colour Box with Foam Insert

PRODUCT DESCRIPTION

ARTHD PORTABLE AIR COMPRESSOR , 12 VOLT AIR COMPRESSOR , 4X4 AIR COMPRESSOR

ARTHD compressors are intended to fill air tanks, tires.our quality engineered Mounting Compressor is widely use on the 4WD Market which worked by 12-volt and 24-volt power.

The New Monster4WD Quick Connector Series compressor is with both end quick coupler on the air hose that you can change the inflating tools that you want for different option such as for tyres , balls , Air blow or Air bag and so on .

NOTE: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.

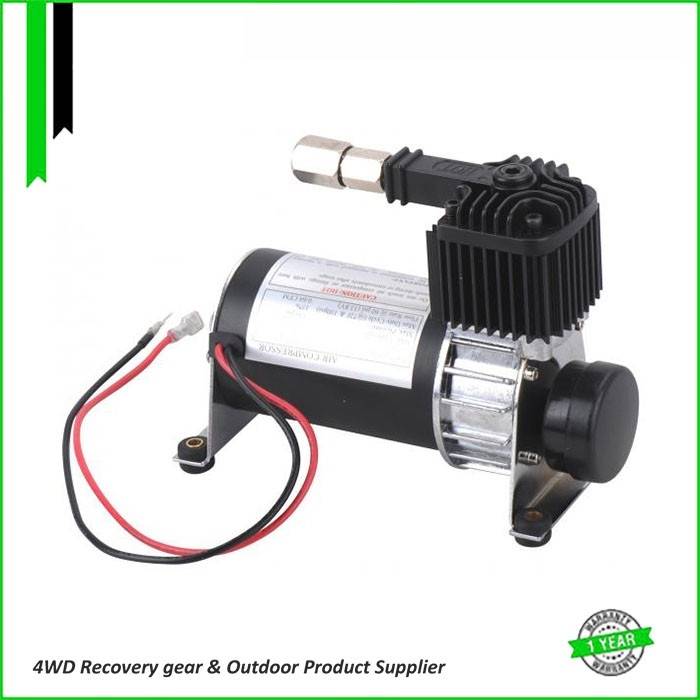

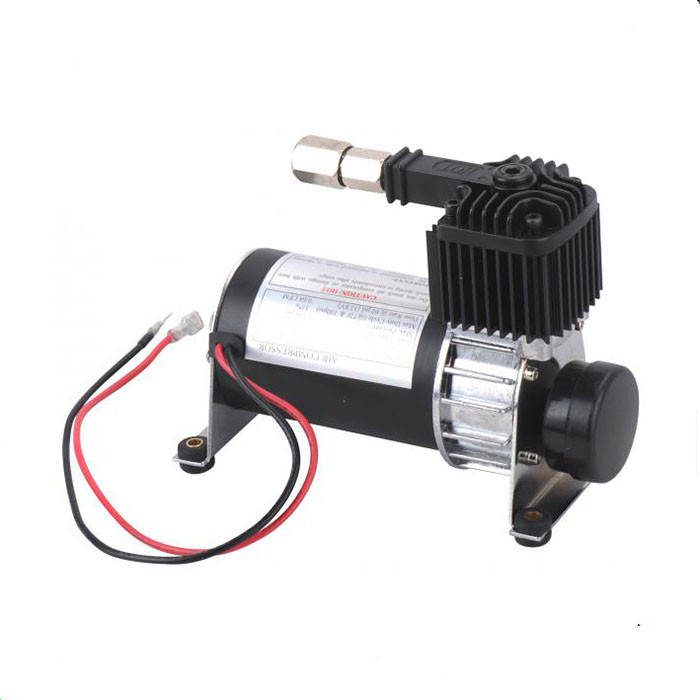

1.1 Pump is an air compressor with a maximum flow rate of 1.1 CFM (cubic feet per minute). This is specified and designed to be used on medium-sized mobile robots. This compressor quickly fills on board air tanks with it's 12V motor. A check valve and plastic inlet filter are included with the 1.1 Pump.

COMPRESSOR SPEC:
Weight: 3.37 Pounds
Width: 3.27"
Length: 6.75 inches
Height: 5.25 inches
Material: Steel and aluminum
Flow Rate: 1.10 cfm at 0 psi
Ports: 1/8" NPT
Voltage: 12 Volt DC
Permanent Magnet motor
Duty Cycle: 15% @ 100 psi
Maximum Working Pressure: 130 psi
Maximum Amp Draw: 16 amps

Performance Test:
Pressure Flow rate Amp Draw
0 psi     1.10 cfm     10 amps
10          0.65             10
20          0.60             11
30          0.56             11.3
40          0.50             11.8
50          0.45            12.5
60          0.41            12.8
70          0.36            13.0
80          0.33            13.1
90          0.32            13.1
100        0.31            13.7
110        0.31             13.5

CHECK HERE TO LEARN MORE DETAIL:

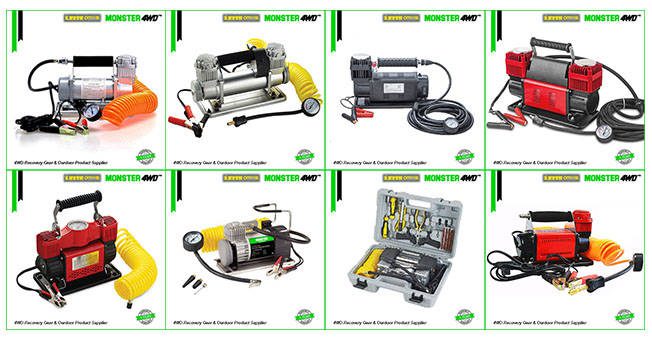

Other Popular Compresor That We Have:
