Industry-specific attributes
Applicable Industries : Retail, Food & Beverage Shops
Type : Snatch Block
Material : Steel
Other attributes
Place of Origin : Zhejiang, China
Brand Name : Monster4WD
Materials : Heavy Duty 45# Steel
Standard Colour : Colour Zinc Plate
Optional Colour : Contact us for more information
Woking Load Limited : 2000kgs (4400 LBS)
Grease Nipple : No
Length : 117mm
Width : 62mm(Hook)
Suit Rope : 7mm
Different Name : Pulley Block, Snatch Pulley, 4WD Snatch Block
Popular Market : 4WD Aftermarket
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
PRODUCT DESCRIPTION
ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Snatch Blockm Recovery Hitch
TIP:Snatch blocks reduce the load placed on a winch when performing a recovery or to avoid damage when changing the direction of the cable.
The snatch block has two outer steel casings which swivel apart and allow the winch cable to be placed over the pulley wheel. Attach snatch blocks to appropriately rated recovery accessories such as tree trunk protectors or extension straps. Connection should be made using rated Bow or D shackles through the eyelets on the two outer casings of the snatch block.

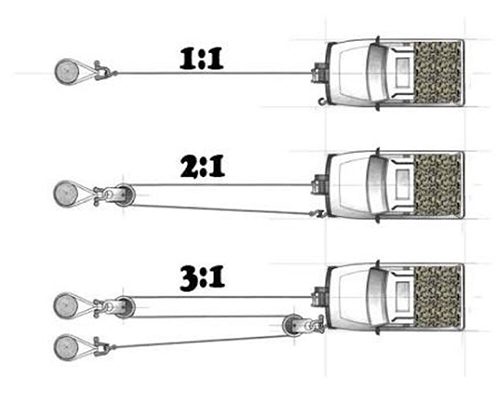

Snatch blocks increase the pulling capacity by 1.5 times for each snatch block used. When using a snatch block your line pull speed is reduced.
PRODUCT SPECIFICATION:
Rated WLL 2000kgs(2Ton) Snatch Block
Materials: Steel
10000kgs and 8000kgs and 4000kgs available
ALL PULLEY BLOCK AVAILABLE AT ARTHD
PRODUCT PICTURE | DESCRIBE | Colour |

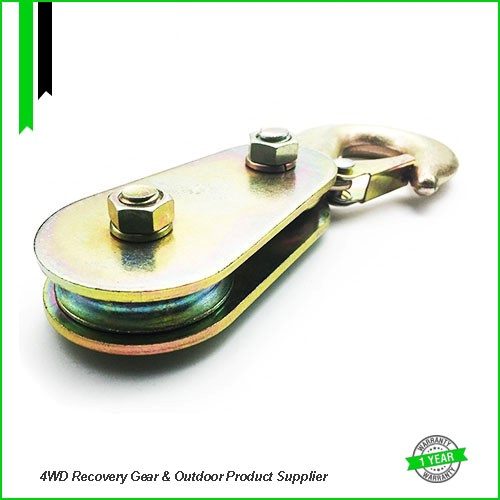

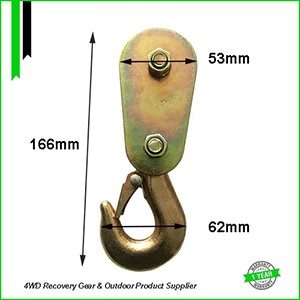

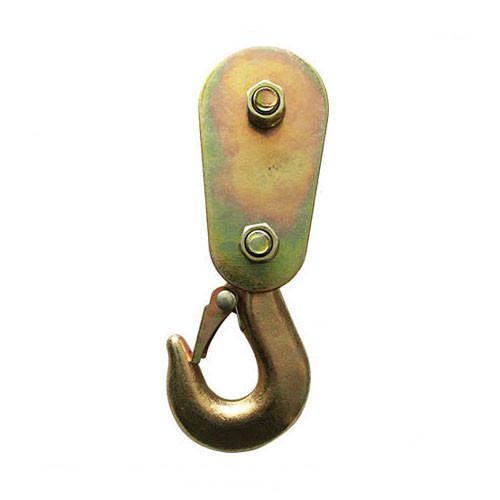

2T Pulley Block Rated 2000kgs(4400LBS) 166mmx62mm |
Standard Colour: Zinc Plated Optional Colour:
|
|

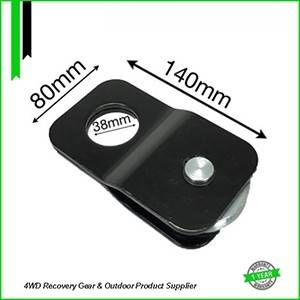

4T Snatch Block Rated 4000kgs(8800LBS) 140mmx80mm |
Standard Colour: Black Powder Coated Optional Colour: |
|

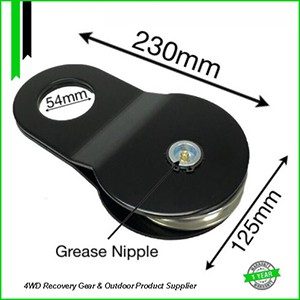

8T Snatch Block Rated 8000kgs(17600LBS) 230mmx125mm |
Standard Colour: Black Powder Coated Optional Colour: |
|

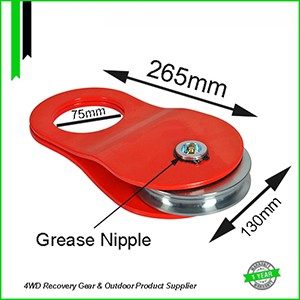

10T Snatch Block Rated 10000kgs(22000LBS) 265mmx130mm |
Standard Colour: Red Powder Coated Optional Colour:
|
The Standard Snatch Block using in the 4WD Recovery .
