Industry-specific attributes
Applicable Industries : Retail
Type : Winch Pulley Blocks
Material : Steel
Other attributes
Place of Origin : Zhejiang, China
Brand Name : Monster4WD
Materials : Heavy Duty 45# Steel
Standard Colour : Black
Optional Colour : Contact us for more information
Woking Load Limited : 4000kgs (8800 LBS)
Grease Nipple : Yes
Length : 140mm
Width : 80mm

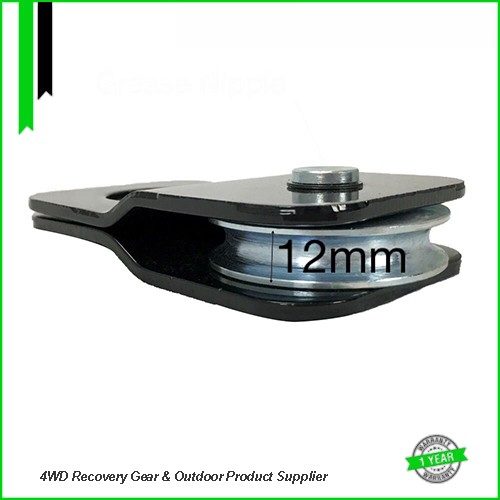

Suit Rope : 12mm
Different Name : Pulley Block, Snatch Pulley, 4WD Snatch Block
Popular Market : 4WD Aftermarket
Supply Ability
Supply Ability : 10000 Piece/Pieces per Month
PRODUCT DESCRIPTION
ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Snatch Blockm Recovery Hitch
TIP:Snatch blocks reduce the load placed on a winch when performing a recovery or to avoid damage when changing the direction of the cable.

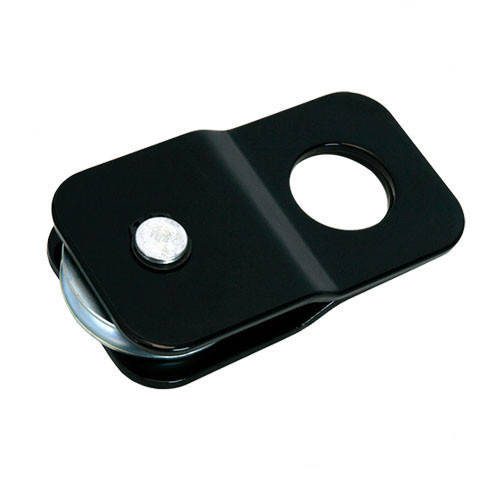

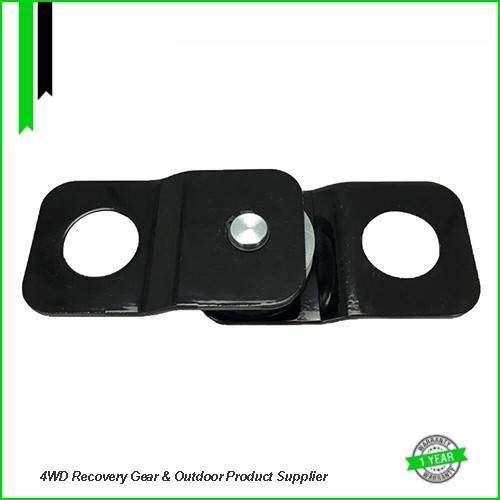

The snatch block has two outer steel casings which swivel apart and allow the winch cable to be placed over the pulley wheel. Attach snatch blocks to appropriately rated recovery accessories such as tree trunk protectors or extension straps. Connection should be made using rated Bow or D shackles through the eyelets on the two outer casings of the snatch block.

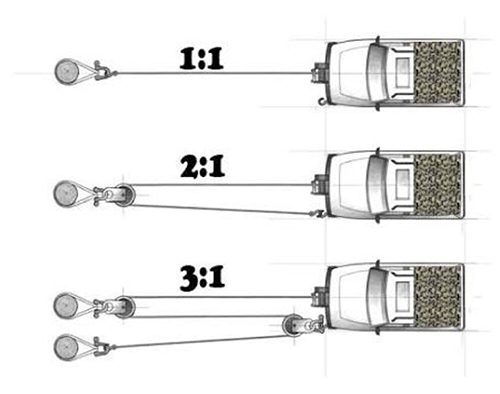

Snatch blocks increase the pulling capacity by 1.5 times for each snatch block used. When using a snatch block your line pull speed is reduced.
PRODUCT SPECIFICATION:
Rated WLL 4000kgs(4Ton) Snatch Block
Materials: Steel
With Grease Nipple
8000kgs and 10000kgs available
| PRODUCT PICTURE | DESCRIBE | Colour |

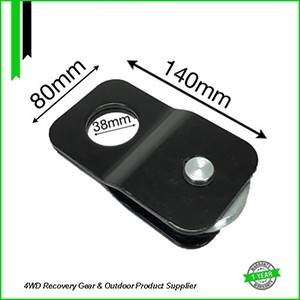

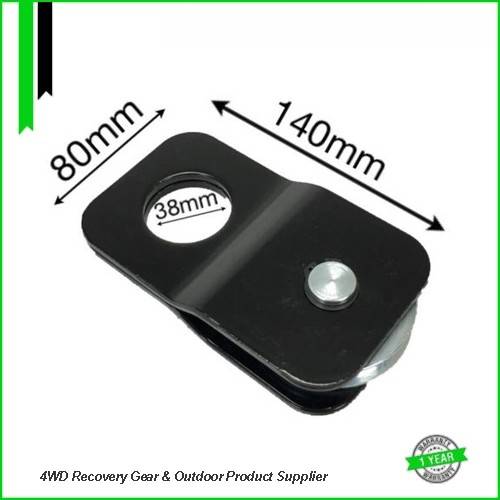

 | 4T Snatch Block Rated 4000kgs(8800LBS) 140mmx80mm | Standard Colour: Black Powder Coated |

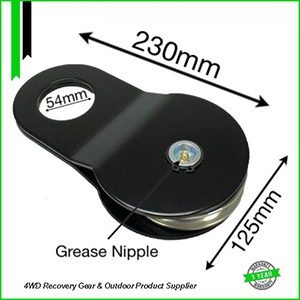

 | 8T Snatch Block Rated 8000kgs(17600LBS) 230mmx125mm | Standard Colour: Black Powder Coated |

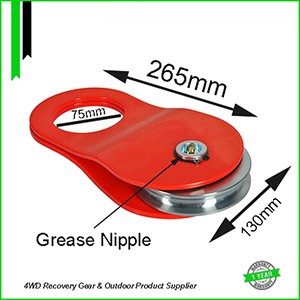

 | 10T Snatch Block Rated 10000kgs(22000LBS) 265mmx130mm | Standard Colour: Red Powder Coated |
The Standard Snatch Block using in the 4WD Recovery .
