Industry-specific attributes
Applicable Industries : Retail, for car
Type : Snatch Block
Material : Steel
Other attributes
Place of Origin : Zhejiang, China
Warranty : 1 year
Customized support : OEM
Brand Name : Monster4WD
Materials : Heavy Duty 45# Steel
Standard Colour : Black
Optional Colour : Contact us for more information

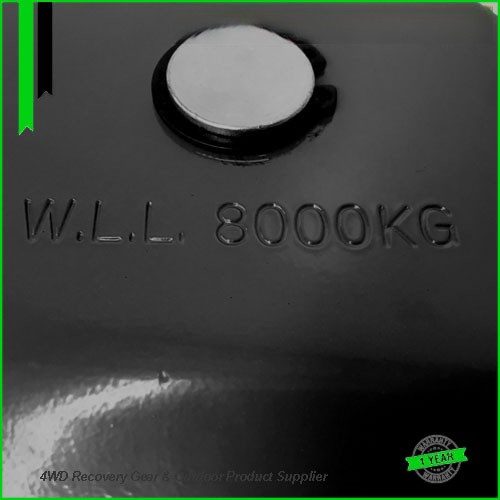

Woking Load Limited : 8000kgs (17600 LBS)

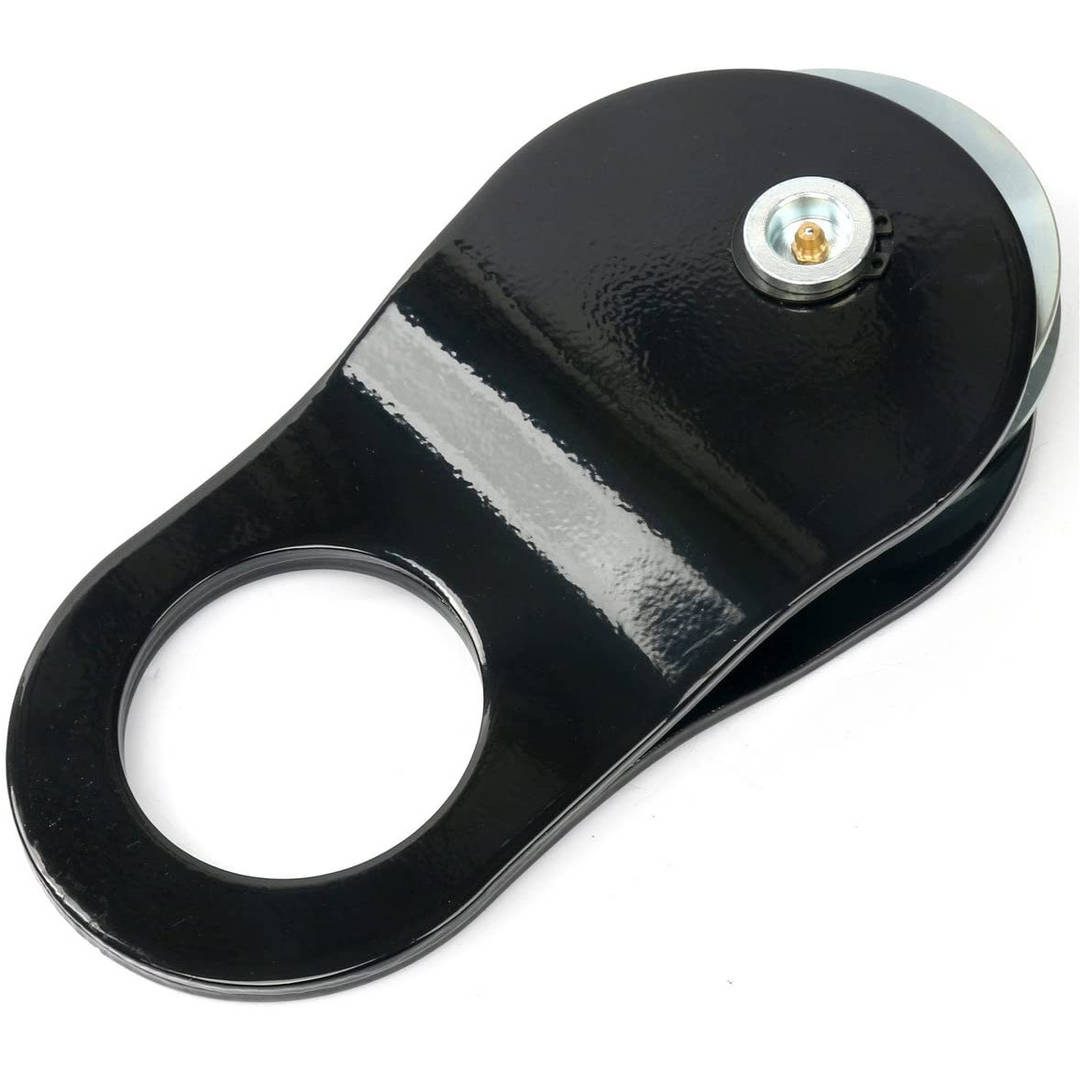

Grease Nipple : Yes

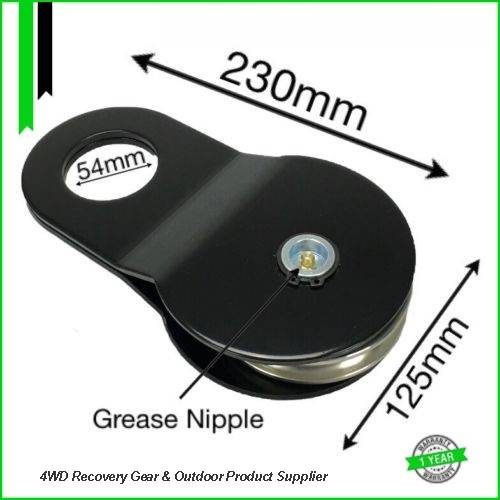

Length : 230mm
Width : 125mm
Suit Rope : 14mm
Different Name : Pulley Block, Snatch Pulley, 4WD Snatch Block
Popular Market : 4WD Aftermarket
PRODUCT DESCRIPTION
ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Snatch Blockm Recovery Hitch
TIP:Snatch blocks reduce the load placed on a winch when performing a recovery or to avoid damage when changing the direction of the cable.

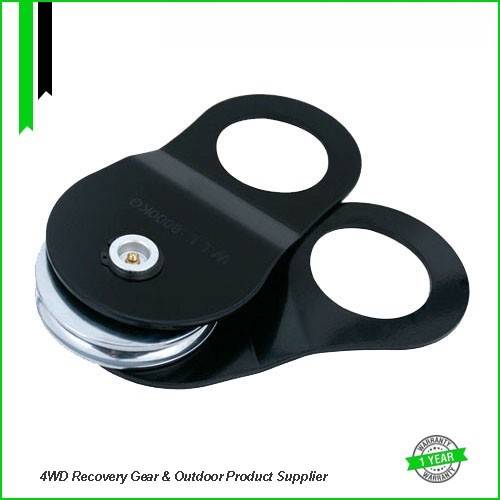

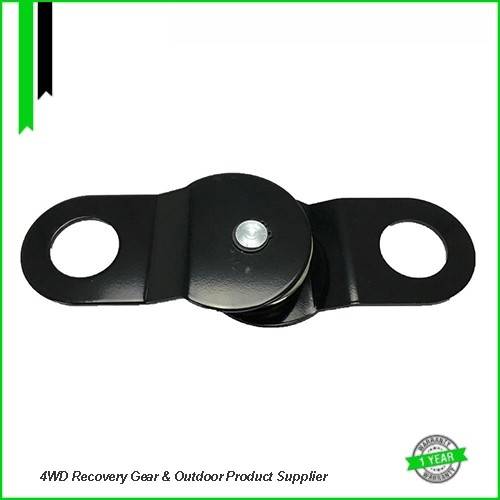

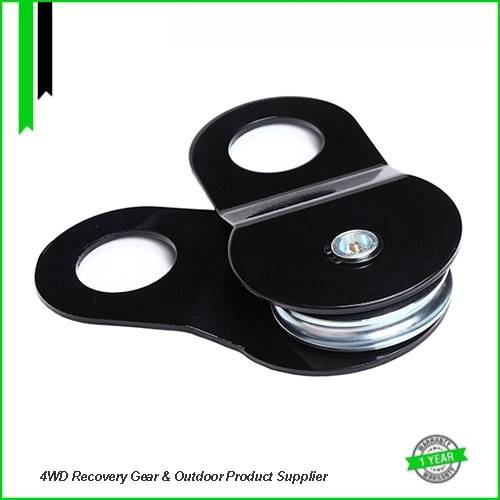

The snatch block has two outer steel casings which swivel apart and allow the winch cable to be placed over the pulley wheel. Attach snatch blocks to appropriately rated recovery accessories such as tree trunk protectors or extension straps. Connection should be made using rated Bow or D shackles through the eyelets on the two outer casings of the snatch block.

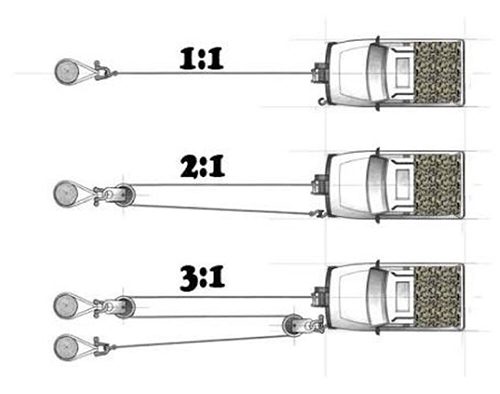

Snatch blocks increase the pulling capacity by 1.5 times for each snatch block used. When using a snatch block your line pull speed is reduced.
PRODUCT SPECIFICATION:
Rated WLL 8000kgs(8Ton) Snatch Block
Materials: Steel
With Grease Nipple
10000kgs and 4000kgs available
| PRODUCT PICTURE | DESCRIBE | Colour |

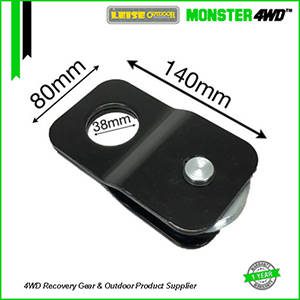

 | 4T Snatch Block Rated 4000kgs(8800LBS) 140mmx80mm | Standard Colour: Black Powder Coated |

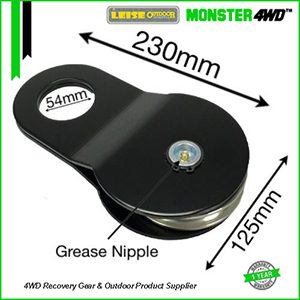

 | 8T Snatch Block Rated 8000kgs(17600LBS) 230mmx125mm | Standard Colour: Black Powder Coated |

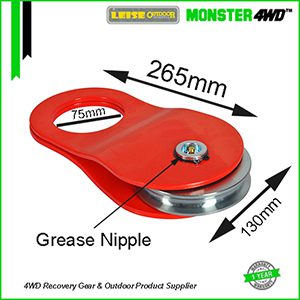

 | 10T Snatch Block Rated 10000kgs(22000LBS) 265mmx130mm | Standard Colour: Red Powder Coated |
The Standard Snatch Block using in the 4WD Recovery .
