Industry-specific attributes
Measurement system : Metric, Imperial (Inch)
Application : Automotive Industry
Material : ALLOY STEEL
Shape : Bow
Other attributes

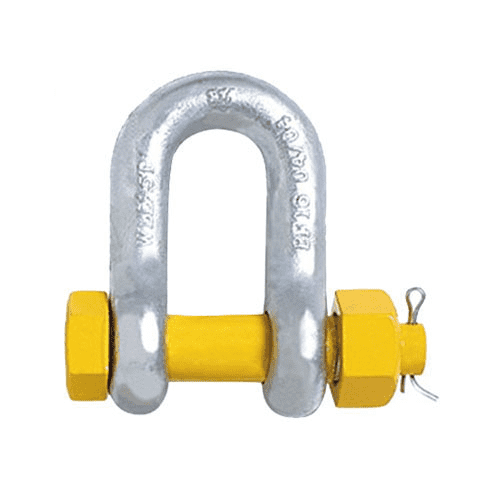

Shackles type : Bow Shackles, DEE SHACKLES
Place of Origin : Zhejiang, China
Shackles pin type : with safety bolt pin
Type : Us Type
Surface Treatment : Black Power Coated or Zinc-Plated
Brand Name : ARTHD, LEISE OUTDOOR
Model Number : M4WD13004
Materials : Heavy Duty Alloy Steel
Standard Colour : Black
Optional Colour : Contact us for more information
Woking Load Limited : 2T, 3.25T, 4.75T
Pin Style : Bolt Type
Bow : US Style
Pin : Screw Pinswith Nut
Us with : Snatch Strap, Towing Strap or Snatch Block or install on Bullbar
Breaking Loaded : 4times or 6times
Popular Market : 4WD Aftermarket
PRODUCT DESCRIPTION

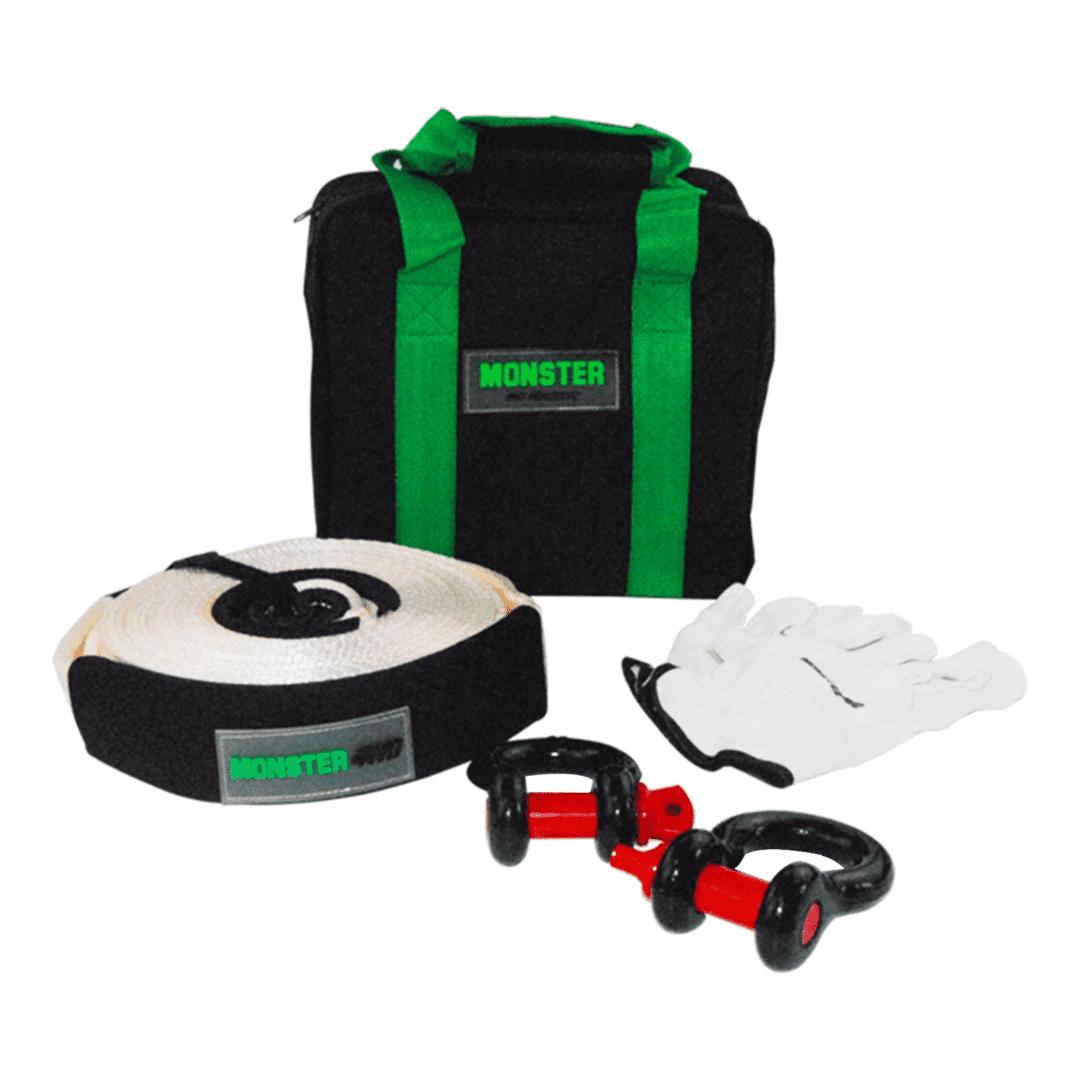

ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Bow Shackle, Snatch Blockm Recovery Hitch
TIP: Shackles are an essential recovery item and you can never have too many of them. They are most commonly used to attach recovery straps, tree trunk protectors, winch extension straps & snatch blocks. The larger 4.75 tonne shackles are best suited to electric winch recovery situations.
The most commonly used shackle is the "Bow" because its shape allows for bulky items to be easily attached. Shackles should only be used on vehicles fitted with recovery rated points featuring closed eyelets.
CAUTIONS: To avoid seizing the screw pin, its always a good idea to back off about 1/2 to 1 turn after fully hand tightening. Shackle pins can seize due to the force exerted during recovery operations.
Inspect shackles before and after use for any damage. If pins are hard to turn or the shackle has been overstressed, it should be immediately replaced.
Shackles can become a lethal missile if something should break or fail during a recovery. Ensure that all spectators are well clear and all recovery lines have a dampening blanket on them . Never load a shackle across its width because the load will be imposed on the threads. The force must be at right angles to the pin.
PRODUCT SPECIFICATION:

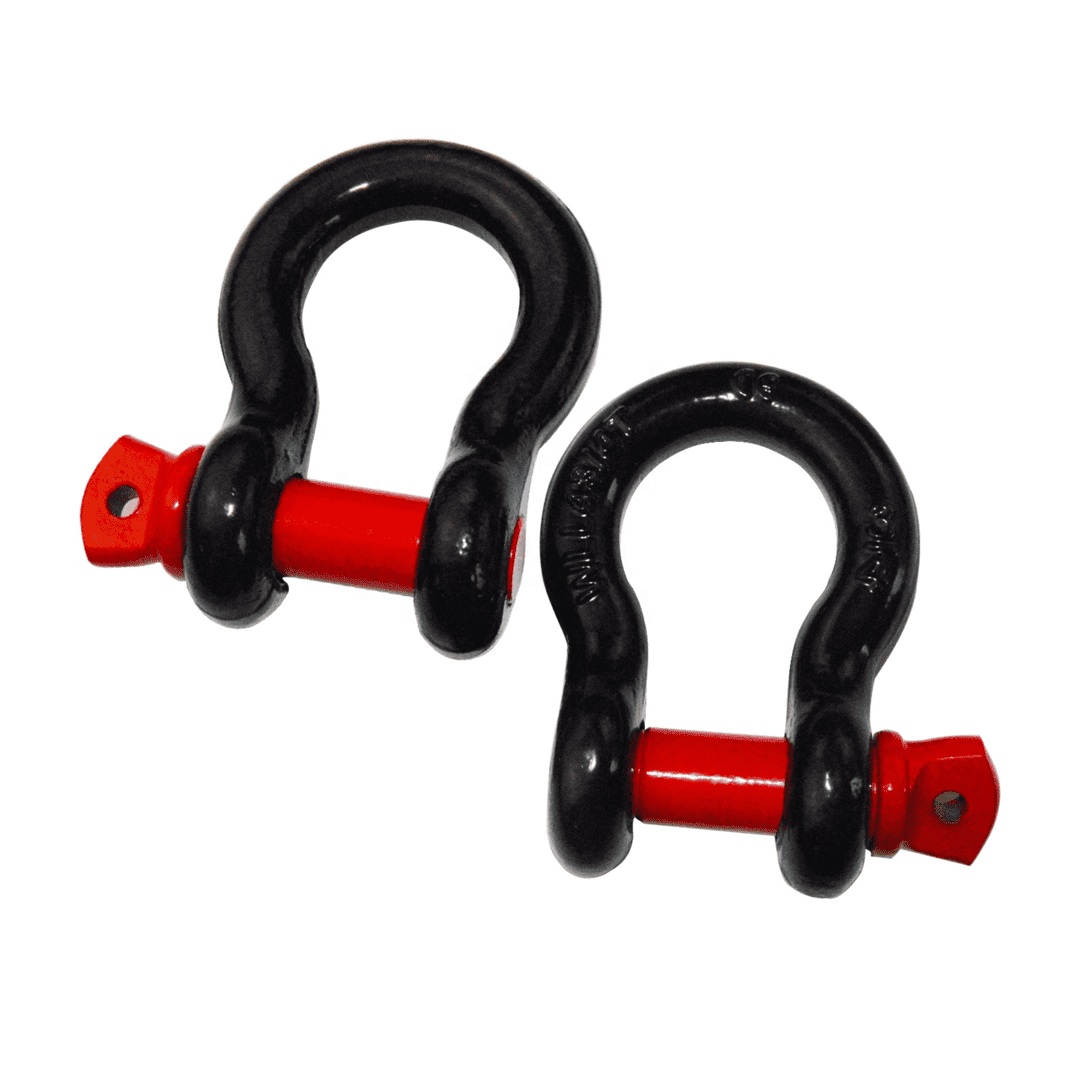

Black Painted Hook with Red Painted Key.(Different Colour will as Buyer's Opinion)
S Grade (6 Time Breaking Load) , 4times Breaking Load Available too
3 size available for 4WD After market. 2T, 3.25T & 4.75T .(More size plz contact with us)
W.L.L compliant with AS/NZS 2741.2002 load requirements.

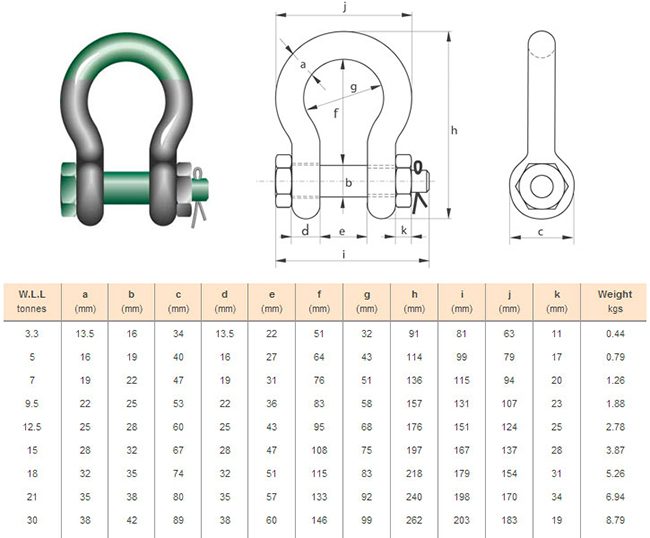

Popular Size In the market:
