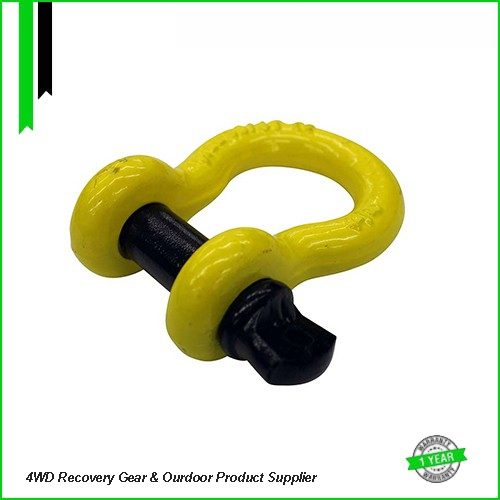

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

Product Description

Industry-specific attributes

Measurement system : Metric, Imperial (Inch)

Application : Automotive Industry

Material : ALLOY STEEL

Shape : Bow

Other attributes

Shackles type : Bow Shackles

Place of Origin : Zhejiang, China

Type : Us Type

Surface Treatment : Black Power Coated or Zinc-Plated

Brand Name : ARTHD, LEISE OUTDOOR

Model Number : M4WD13003

Materials : Heavy Duty Alloy Steel

Standard Colour : Black

Optional Colour : Contact us for more information

Woking Load Limited : 2T, 3.25T, 4.75T

Pin Style : Screw Pins

Bow : US Style

Pin : Screw Pins

Us with : Snatch Strap, Towing Strap or Snatch Block or install on Bullbar

Breaking Loaded : 4times or 6times

Popular Market : 4WD Aftermarket

PRODUCT DESCRIPTION





ARTHD Quality 4WD Recovery Kit , Winch Kit, Recovery Accessories, Snatch Strap, Bow Shackle, Snatch Blockm Recovery Hitch



TIP: Shackles are an essential recovery item and you can never have too many of them. They are most commonly used to attach recovery straps, tree trunk protectors, winch extension straps & snatch blocks. The larger 4.75 tonne shackles are best suited to electric winch recovery situations.



The most commonly used shackle is the "Bow" because its shape allows for bulky items to be easily attached. Shackles should only be used on vehicles fitted with recovery rated points featuring closed eyelets.



CAUTIONS: To avoid seizing the screw pin, its always a good idea to back off about 1/2 to 1 turn after fully hand tightening. Shackle pins can seize due to the force exerted during recovery operations.



Inspect shackles before and after use for any damage. If pins are hard to turn or the shackle has been overstressed, it should be immediately replaced.



Shackles can become a lethal missile if something should break or fail during a recovery. Ensure that all spectators are well clear and all recovery lines have a dampening blanket on them . Never load a shackle across its width because the load will be imposed on the threads. The force must be at right angles to the pin.



PRODUCT SPECIFICATION:

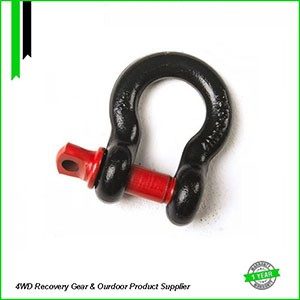

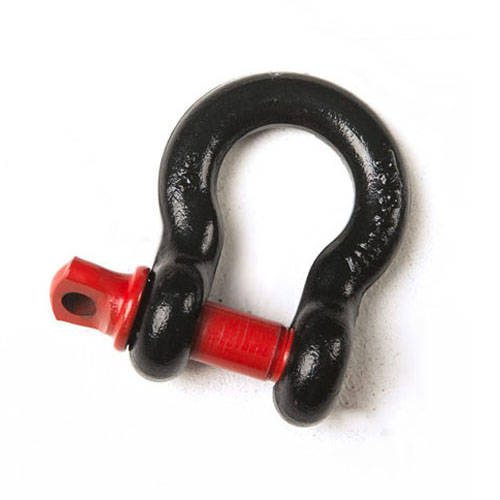

Black Painted Hook with Red Painted Key.(Different Colour will as Buyer's Opinion)
S Grade (6 Time Breaking Load) , 4times Breaking Load Available too
3 size available for 4WD After market. 2T, 3.25T & 4.75T .(More size plz contact with us)
W.L.L compliant with AS/NZS 2741.2002 load requirements.



Popular BOW SHACKLE in the 4WD Recovery Market

PRODUCT PICTUREDESCRIBEColour
Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

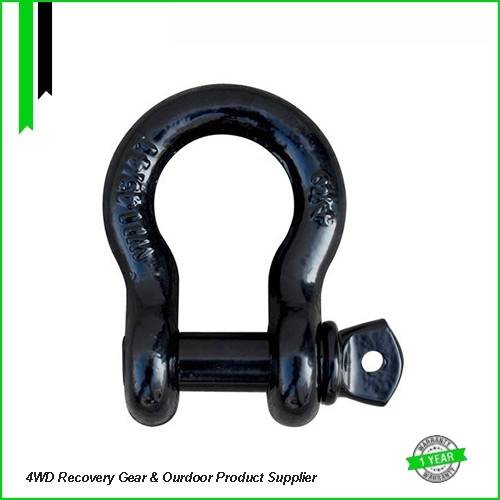

W.L.L 4.75T Bow Shackle

Rated 4750kgs(10450LBS)

Bow:  3/4" (19mm)

Pin:  7/8" (22mm)

Materials: Alloy Steel

4Times Breaking Load: 19T

6Times Breaking Load: 28.5T

Screw Pins Type

Standard Colour:

Black Powder Coated

Optional Colour:

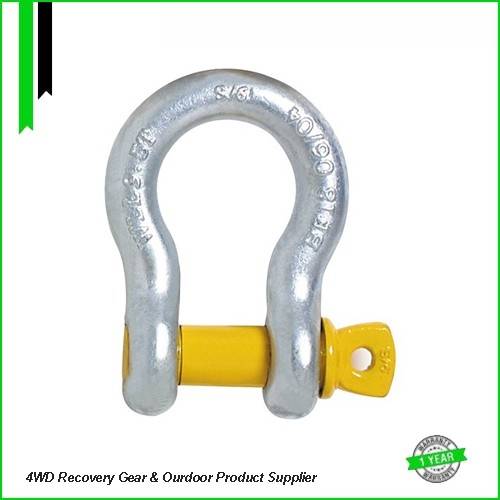

Zinc-Plated or Sliver Powder Coated

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

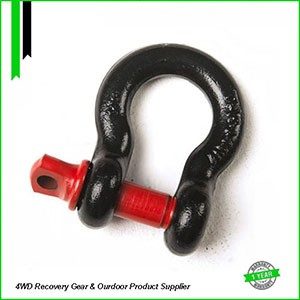

W.L.L 3.25T Bow Shackle

Rated 3250kgs(7150LBS)

Bow:  5/8" (16mm)

Pin:  3/4" (19mm)

Materials: Alloy Steel

4Times Breaking Load: 13T

6Times Breaking Load: 19.5T

Screw Pins Type

Standard Colour:

Black Powder Coated

Optional Colour:
Red, Green, Black, Pink or Other , need to get confirmation before prepare the order.

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

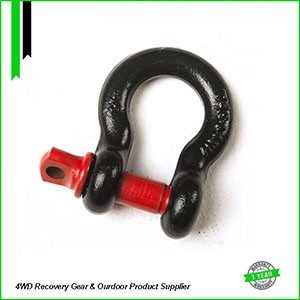

W.L.L 2T Bow Shackle

Rated 2000kgs(4400LBS)

Bow:  1/2" (12.7mm)

Pin:  5/8" (16mm)

Materials: Alloy Steel

4Times Breaking Load: 8T

6Times Breaking Load: 12T

Screw Pins Type



Standard Colour:

Black Powder Coated

Optional Colour:
Red, Green, Black, Pink or Other , need to get confirmation before prepare the order.

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear

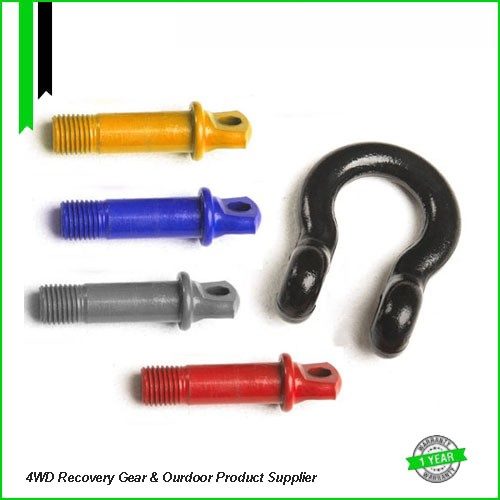

Bow Shackle Colour

Multi-colour available if order QTY over 1000piece each model.

Standard Colour:

Black Powder Coated

Optional Colour:
Red, Green, Black, Pink or Other , need to get confirmation before prepare the order.

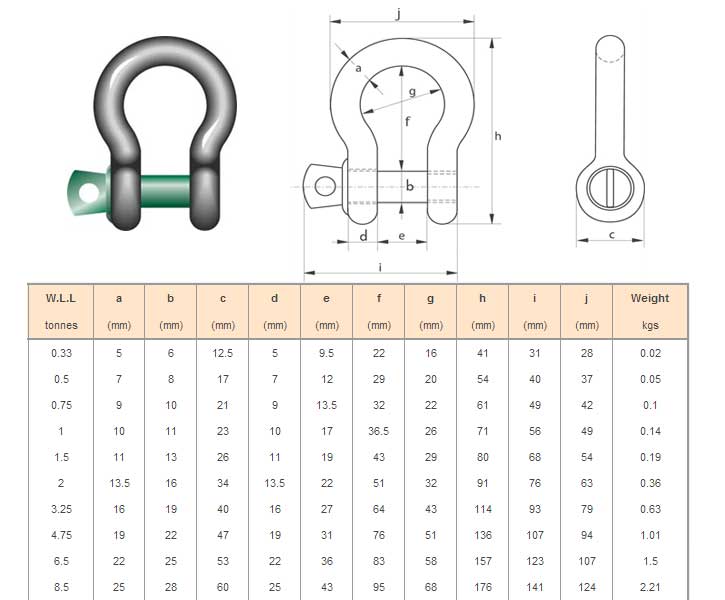

ALL Popular BOW SHACKLE in the Market:

Monster4WD Screw Pin Rated Recovery Bow Shackle Recovery Gear
